Heavy Wall SA312 Stainless Steel Seamless Tubing Chemical Transportation
Packaging & Delivery
SIZE RANGE :
MAIN STEEL TYPE AND GRADE :
MAIN PRODUCTION STANDARDS:
Stainless Steel Seamless Pipe:
1.A999/A999M: Each pipe shall be subjected to the nondestructive electric test or the hydrostatic test, the pipe of test to be used shall be at the option of the mfg, unless otherwise specified in the PO.
2. The Pipe lengths: Unless otherwise agreed upon, all size from NPS 1/8” TO AND INCLUDING nps 8 are available in a length up to 24ft with the permitted range of 15 to 24 ft. Short length are acceptable and the number and min, length shall be agreed upon between mfg and purchaser.
3. The finished pipe shall be reasonably straight and shall have workmanlike finish, Removal of imperfections by grinding is permitted, provided the W.T are not decreased to the less than the permitted in Section 9 of Specification A999/A999M
4. Butt Weld End: According to ANSI B 16.25
5. Pipe Marking: Specified in A999/999M, include “ Logo+Standard+SIZE+Heat No.+Lot No.+H.T/E.T/U.T”
6. Packing: Each Pipe end is protected by Plastic cap. Then packed by Anti - rust steel strip, The outside of the bundle is plastic woven bag, or Plastic film.
7. Packing Mark: SIZE + STEEL GRADE+ QTY OF PIECE/WEIGHT/METRE.
- FOB PriceUSD 800 - 30,000/Piece
- PortNingbo or Shanghai
- MOQ0.5 Tons
- Supply Ability1000 Tons Per Month
- Payment TermsL/C,T/T,Western Union
- PackagingSeaworthy plywood cases or pallets
- Delivery2 - 15 days
Quick Detail:

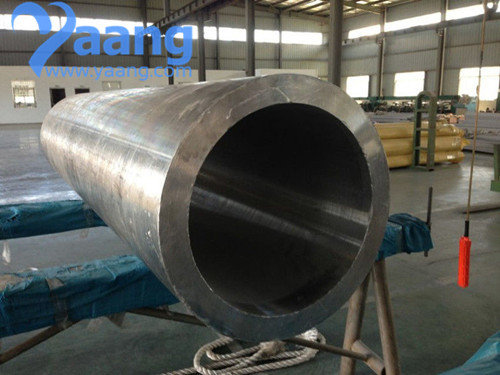

Name: Heavy Wall SA312 Stainless Steel Seamless Tubing Chemical Transportation
Shape: Seamless Stainless Steel Pipe Material: stainless steel
Steel Grade: TP304/TP304L/TP316L/TP304H/TP347H/S31803...
Packaging & Delivery
| Packaging Detail: | according to customer's require or export's standard |
| Delivery Detail: | 2 - 15 days after confirmation |
Specifications:
Stainless Steel Seamless Tubing
We offers a complete range of sizes in a variety of specifications
1. Wall: 0.5mm— 60mm
OD: 6mm— 830mm
2. Material: TP304/TP304L/TP316L/TP304H/TP347H/S31803/S31500/S32750/00Cr19Ni10/08X18H10T etc
3. Surface: Solid Annealed/Pickling/180# 240# 320# 400#
1. Wall: 0.5mm— 60mm
OD: 6mm— 830mm
2. Material: TP304/TP304L/TP316L/TP304H/TP347H/S31803/S31500/S32750/00Cr19Ni10/08X18H10T etc
3. Surface: Solid Annealed/Pickling/180# 240# 320# 400#
| Material Grade: | TP304/TP304L/TP316L/TP304H/TP347H/S31803/S31500/S32750/00Cr19Ni10/08X18H10T | Outer Diameter: | 6mm - 830mm |
| Standard: |
EN10216 - 5, EN10216 - 2, DIN 17456, DIN 17458,
ASTM A312, A213, A269, A511, A789, A790 ETC,
GOST 9941, JIS G3459
| Surface: | Solid Annealed/Pickling/180# 240# 320# 400# |
| Type: | Stainless Steel Seamless Pipe/Tube | Wall Thickness: | 0.5mm - 60mm |
SIZE RANGE :
STEEL TYPES
|
SIZE RANGE
|
Stainless steel seamless pipe& tube
|
OD: 6 - 830mm WT: 0.6 - 60mm
|
U - Tube
|
OD: 12 - 38mm WT: 0.6 - 4mm
|
MAIN STEEL TYPE AND GRADE :
PRODUCTS
|
TYPICAL STEEL GRADE
|
Austenitic
|
TP304, TP304L, TP304H, TP316, TP316L, TP316H, TP316Ti
TP321, TP321H, TP347H, 904L, TP310H, TP310S, TP317, TP317L |
Duplex/Super Duplex
|
S31803, S32205, S32750
|
MAIN PRODUCTION STANDARDS:
STANDARD TYPE
|
STANDARD
|
EN
|
EN10216 - 5, EN10216 - 2
|
DIN
|
DIN 17456, DIN 17458
|
ASTM
|
ASTM A312, A213, A269, A511, A789, A790 ETC
|
GOST
|
GOST 9941, GOST 5632
|
JIS
|
JIS G3459, JIS G3463
|
GB
|
GB/T14975, GB/T14975, GB13296, GB5310, GB9948
|
Stainless Steel Seamless Pipe:
1.A999/A999M: Each pipe shall be subjected to the nondestructive electric test or the hydrostatic test, the pipe of test to be used shall be at the option of the mfg, unless otherwise specified in the PO.
2. The Pipe lengths: Unless otherwise agreed upon, all size from NPS 1/8” TO AND INCLUDING nps 8 are available in a length up to 24ft with the permitted range of 15 to 24 ft. Short length are acceptable and the number and min, length shall be agreed upon between mfg and purchaser.
3. The finished pipe shall be reasonably straight and shall have workmanlike finish, Removal of imperfections by grinding is permitted, provided the W.T are not decreased to the less than the permitted in Section 9 of Specification A999/A999M
4. Butt Weld End: According to ANSI B 16.25
5. Pipe Marking: Specified in A999/999M, include “ Logo+Standard+SIZE+Heat No.+Lot No.+H.T/E.T/U.T”
6. Packing: Each Pipe end is protected by Plastic cap. Then packed by Anti - rust steel strip, The outside of the bundle is plastic woven bag, or Plastic film.
7. Packing Mark: SIZE + STEEL GRADE+ QTY OF PIECE/WEIGHT/METRE.
APPLICATIONS FIELD :
1. Pipe and Tubes for petrochemical industry
2. Pharmaceutical industry
3. Food industry
4. Aviation and aerospace industry
3. Food industry
4. Aviation and aerospace industry
5. Architectural decoration industry
