Inconel 625 Socket Weld Flange
- FOB PriceUSD 1 - 1,900/Piece
- PortNingbo or Shanghai Port
- MOQ1 Piece
- Supply Ability1000 Pieces Per Day
- Payment TermsL/C,T/T,Western Union,MoneyGram
- PackagingSeaworthy plywood cases or pallets
- Delivery2 - 10 days
Quick Details
| Material: |
Inconel 625, etc
| Technics: |
Forged
| Type: |
Inconel 625 Socket Weld Flange
|
| Place of Origin: |
Zhejiang, China (Mainland)
| Head Code: |
Round
| Brand Name: | |
| Connection: |
Welding
| Shape: |
Equal
|
Packaging & Delivery
| Packaging Details: | plywood case or fumigation woodern case |
|---|---|
| Delivery Detail: | 2 - 10 days |
Specifications
Inconel 625 Socket Weld Flange
1.Size: ½" to 48"
2.Class / Pressure: 150#, 300#, 600#, 900#, 1500#, 2500#, etc
3.Standard: ASME, JIS, DIN, ANSI, etc.
4.Material: Inconel 625, etc

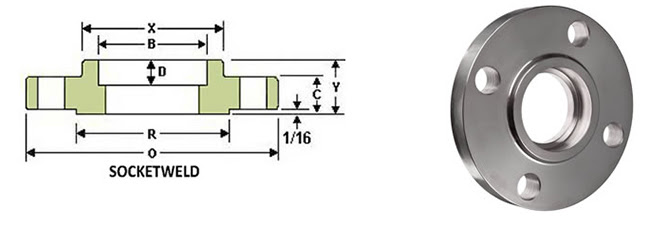

What is a Socket Weld Flange?
A Inconel 625 Socket Weld Flange is identical to Slip On Flange with a small precisely machined cavity to match the schedule of the to-be welded pipe.
Why Socket Weld Flange?
Inconel 625 Socket Weld Flange is socketed with plain end pipe & twin welded with the flange cavity allowing high pressure flow without any unaccounted stress over the pipeline wall. Socket Weld Flange is twin welded, one at the hub end & other at the junction of the pipe’s plain end & bore cavity. Socket Weld Flanges are designed for used with smaller size pipelines with high pressure ratings.
Specifications
Inconel 625 Socket Weld Flange
1.Size: ½" to 48"
2.Class / Pressure: 150#, 300#, 600#, 900#, 1500#, 2500#, etc
2.Class / Pressure: 150#, 300#, 600#, 900#, 1500#, 2500#, etc
3.Standard: ASME, JIS, DIN, ANSI, etc.
4.Material: Inconel 625, etc
What is a Socket Weld Flange?
A Inconel 625 Socket Weld Flange is identical to Slip On Flange with a small precisely machined cavity to match the schedule of the to-be welded pipe.
Why Socket Weld Flange?
Inconel 625 Socket Weld Flange is socketed with plain end pipe & twin welded with the flange cavity allowing high pressure flow without any unaccounted stress over the pipeline wall. Socket Weld Flange is twin welded, one at the hub end & other at the junction of the pipe’s plain end & bore cavity. Socket Weld Flanges are designed for used with smaller size pipelines with high pressure ratings.
Description Of Inconel 625 Socket Weld Flange
Type
Size
1/2" To 48" (DN15-1200)
Wall thickness
sch10, sch20, sch30, std, sch40, sch60,
xs, sch80, sch100, etc
Standards
ASME, ASTM, DIN, JIS, etc
Material
Carbon Steel: ASTM: SA105N/A105, ASTM SA350 LF2,etc
Stainless Steel: ASTM A182 F304/304L/316/316L, etc
Alloy Steel: ASTM A182 F1/F5/F9/F11/F22/F91, Etc.
Duplex stainless steel: ASTM A182 F51/F53/F55/F60, etc
Nicke alloys: Nickel 200, Monel 400, Inconel 600/625, Incoloy 825/800,
Hastelloy C276, Hastelloy C22, Hastelloy B1/B2/B3, Alloy 20, etc
Cu-Ni: 90/10,70/30, etc
Surface treatment
Transparent oil, rust-proof black oil or hot galvanized
Applications
Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc
Description Of Inconel 625 Socket Weld Flange
Type
| |
Size
|
1/2" To 48" (DN15-1200)
|
Wall thickness
|
sch10, sch20, sch30, std, sch40, sch60,
xs, sch80, sch100, etc
|
Standards
|
ASME, ASTM, DIN, JIS, etc
|
Material
|
Carbon Steel: ASTM: SA105N/A105, ASTM SA350 LF2,etc
Stainless Steel: ASTM A182 F304/304L/316/316L, etc
Alloy Steel: ASTM A182 F1/F5/F9/F11/F22/F91, Etc.
Duplex stainless steel: ASTM A182 F51/F53/F55/F60, etc
Nicke alloys: Nickel 200, Monel 400, Inconel 600/625, Incoloy 825/800,
Hastelloy C276, Hastelloy C22, Hastelloy B1/B2/B3, Alloy 20, etc
Cu-Ni: 90/10,70/30, etc
|
Surface treatment
|
Transparent oil, rust-proof black oil or hot galvanized
|
Applications
|
Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc
|
UNS N06625 Werkstoff Nr. 2.4856
What are the characteristics of Inconel 625?
- High creep-rupture strength
- Oxidation resistant to 1800° F
- Seawater pitting and crevice corrosion resistant
- Immune to chloride ion stress corrosion cracking
- Non-magnetic
| UNS | N06625 |
| Werkstoff Nr. | 2.4856 |
What are the characteristics of Inconel 625?
- High creep-rupture strength
- Oxidation resistant to 1800° F
- Seawater pitting and crevice corrosion resistant
- Immune to chloride ion stress corrosion cracking
- Non-magnetic
Chemical Composition, %
| Cr | Ni | Mo | Co + Nb | Ta | Al | Ti | C |
|---|---|---|---|---|---|---|---|
| 20.00-30.00 | Remainder | 8.0-10.0 | 1.0 max | 3.15-4.15 | .40 max | .40 max | .10 max |
| Fe | Mn | Si | P | S | |||
|---|---|---|---|---|---|---|---|
| 5.0 max | .50 max | .50 max | .015 max | .015 max |
Mechanical & Physical Properties – Inconel 625
Density 8.4 g/cm3 Melting Point 1350 °C (2460 °F) Tensile Strength Psi – 135,000 , MPa – 930 Yield Strength (0.2%Offset) Psi – 75,000 , MPa – 517 Elongation 42.5 %
| Density | 8.4 g/cm3 |
| Melting Point | 1350 °C (2460 °F) |
| Tensile Strength | Psi – 135,000 , MPa – 930 |
| Yield Strength (0.2%Offset) | Psi – 75,000 , MPa – 517 |
| Elongation | 42.5 % |
In what applications is Inconel 625 used?
- Aircraft ducting systems
- Aerospace
- Jet engine exhaust systems
- Engine thrust-reverser systems
- Specialized seawater equipment
- Chemical process equipment
Inconel 625 is a corrosion and oxidation resistant nickel alloy that is used both for its high strength and outstanding aqueous corrosion resistance. Inconel Alloy 625 has excellent fatigue strength and stress-corrosion cracking resistance to chloride ions. This nickel alloy has excellent weldability and is frequently used to weld AL-6XN.
In what applications is Inconel 625 used?
- Aircraft ducting systems
- Aerospace
- Jet engine exhaust systems
- Engine thrust-reverser systems
- Specialized seawater equipment
- Chemical process equipment
Inconel 625 is a corrosion and oxidation resistant nickel alloy that is used both for its high strength and outstanding aqueous corrosion resistance. Inconel Alloy 625 has excellent fatigue strength and stress-corrosion cracking resistance to chloride ions. This nickel alloy has excellent weldability and is frequently used to weld AL-6XN.
Inconel 625 Socket Weld Flange Packing & Shipping
1) Packing Method:
Normal packing: plastic film or bubble paper wrapped on product's surface ,protect ends with caps,
pack with wooden case or load on fumifation plywood pallet .
Custom made as customers request .
2) Shipping Way:
Usually by Sea, By Air, By Train or River-and-Sea Coordinated Transport.
As per customer's request.
Where can we find the high quality Inconel 625 Socket Weld Flange.
You can visit this website: www.yaang.com (Zhejiang Yaang Pipe Industry Co., Limited).
