ASME B16.5 ASTM A182 F304 Plate Flange RF 16 Inch 150LB
- FOB PriceUSD 1 - 1,900/Piece
- PortNingbo or Shanghai Port
- MOQ1 Piece
- Supply Ability1000 Pieces Per Day
- Payment TermsL/C,T/T,Western Union,MoneyGram
- PackagingSeaworthy plywood cases or pallets
- Delivery2 - 10 days
Quick Details
| Material: |
304 (UNS S30400)
| Size: |
16" (DN400)
| Type: | |
| Place of Origin: |
Zhejiang, China (Mainland)
| Connection: |
Welding
| Brand Name: |
Yaang
|
| Standard: |
ASME B16.5
| Shape: |
Round
| Standard or Nonstandard: |
Standard
|
| Technics: |
Forged
|
Packaging & Delivery
| Packaging Details: | Seaworthy plywood case or as customer requests |
|---|---|
| Delivery Detail: | 2 - 10 days after receiving the deposit |
Specifications

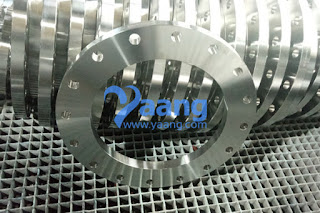

ASME B16.5 ASTM A182 F304 Plate Flange RF 16 Inch 150LB
1. Material: 304 (UNS S30400)
2. Size: 16" (DN400)
3. Standard: ASME B16.5
4. Pressure: 150LBS
Plate flanges are fabricated mainly from quality mill steel plates. They are similar to slip on flange but without the hub and also require two fillet welds. Mostly the plate flanges are produced in accordance with DIN, JIS, UNI, BS or GOST standards.
When building a pipeline, the length of the pipes used are not always known. By manufacturing the pipes separate from the plate flanges, the welders can cut the pipes to length and weld a plate flanges in place to join the pipes at any needed length. The plates can also be welded to the pipe on a slight bias, allowing two pipes to be joined that may not be precisely lined up.
China Plate Flange Manufacturer Yaang supplies ASME B16.5 ASTM A182 F304 Plate Flange, RF, 16 Inch, 150LB.
1. Material: 304 (UNS S30400)
2. Size: 16" (DN400)
3. Standard: ASME B16.5
4. Pressure: 150LBS
Plate flanges are fabricated mainly from quality mill steel plates. They are similar to slip on flange but without the hub and also require two fillet welds. Mostly the plate flanges are produced in accordance with DIN, JIS, UNI, BS or GOST standards.
When building a pipeline, the length of the pipes used are not always known. By manufacturing the pipes separate from the plate flanges, the welders can cut the pipes to length and weld a plate flanges in place to join the pipes at any needed length. The plates can also be welded to the pipe on a slight bias, allowing two pipes to be joined that may not be precisely lined up.
China Plate Flange Manufacturer Yaang supplies ASME B16.5 ASTM A182 F304 Plate Flange, RF, 16 Inch, 150LB.
Chemical Composition and Mechanical Property For ASTM A182 F304 Steel Grade Chemical Composition Mechanical performance C(Max) Si(Max) Mn(Max) P(Max) S(Max) Ni Cr Mo Tensile Strength
(Min） Yield Strength
(Min) psi Mpa psi Mpa F304 0.08 1.00 2.00 0.045 0.03 8.0–11.0 18.0–20.0 / 515 75 205 30
| Chemical Composition and Mechanical Property For ASTM A182 F304 | ||||||||||||
| Steel Grade | Chemical Composition | Mechanical performance | ||||||||||
| C(Max) | Si(Max) | Mn(Max) | P(Max) | S(Max) | Ni | Cr | Mo | Tensile Strength (Min） | Yield Strength (Min) | |||
| psi | Mpa | psi | Mpa | |||||||||
| F304 | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 8.0–11.0 | 18.0–20.0 | / | 515 | 75 | 205 | 30 |
ANSI/ASME/ASA B16.5 150lb/sq.in. Flange Plate RF
ΓΈ
D
b
g
m
J
k
Holes
l
Kg.
1/2"
88,9
11,1
34,9
30,2
22,3
60,3
4
15,9
0,400
3/4"
98,4
12,7
42,9
38,1
27,7
69,8
4
15,9
0,700
1"
107,9
14,3
50,8
49,2
34,5
79,4
4
15,9
0,800
1 1/4"
117,5
15,9
63,5
58,8
43,2
88,9
4
15,9
1,100
1 1/2"
127,0
17,5
73,0
65,1
49,5
98,4
4
15,9
1,400
2"
152,4
19,0
92,1
77,8
62,0
120,6
4
19,0
2,200
2 1/2"
177,8
22,2
104,8
90,5
74,7
139,7
4
19,0
3,600
3"
190,5
23,8
127,0
107,9
90,7
152,4
4
19,0
4,100
3 1/2"
215,9
23,8
139,7
122,2
103,4
177,8
8
19,0
5,200
4"
228,6
23,8
157,2
134,9
116,1
190,5
8
19,0
5,600
5"
254,0
23,8
185,7
163,6
143,8
215,9
8
22,2
6,300
6"
279,4
25,4
215,9
192,1
170,7
241,3
8
22,2
7,500
8"
342,9
28,6
269,9
246,1
221,5
298,4
8
22,2
12,600
10"
406,4
30,2
323,8
304,8
276,3
361,9
12
25,4
18,500
12"
482,6
31,7
381,0
365,1
327,1
431,8
12
25,5
28,000
14"
533,4
34,9
412,7
400,0
359,1
476,2
12
28,6
36,000
16"
596,9
36,5
469,9
457,2
410,5
539,7
16
28,6
46,000
18"
635,0
39,7
533,4
504,8
461,8
577,8
16
31,7
50,000
20"
698,5
42,9
584,2
558,8
513,1
635,0
20
31,7
64,000
22"
749,3
46,0
641,2
609,6
564,4
692,1
20
34,9
72,000
24"
812,8
47,6
692,1
663,6
615,9
749,3
20
34,9
89,000
NOTE:
1. Class 150 flanges except Lap Joint will be furnished with 0.06 (1.6mm) raised face, which is included in ‘Thickness’ (C) and ‘Length through Hub’ (Y1), (Y3).
2. For Slip-on, Threaded, Socket Welding and Lap Joint Flanges, the hubs can be shaped either vertical from base to top or tapered within the limits of 7 degrees.
3. Blind Flanges may be made with the same hub as that used for Slip-on Flanges or without hub.
4. The gasket surface and backside (bearing surface for bolting) are made parallel within 1 degree. To accomplish parallelism, spot facing is carried out according to MSS SP-9, without reducing thickness (C).
5. Depth of Socket (D) is covered by ANSI B 16.5 only in sizes through 3 inch, over 3 inch is at the manufacturer’s option.
ANSI/ASME/ASA B16.5 150lb/sq.in. Flange Plate RF
| |||||||||
ΓΈ
|
D
|
b
|
g
|
m
|
J
|
k
|
Holes
|
l
|
Kg.
|
1/2"
|
88,9
|
11,1
|
34,9
|
30,2
|
22,3
|
60,3
|
4
|
15,9
|
0,400
|
3/4"
|
98,4
|
12,7
|
42,9
|
38,1
|
27,7
|
69,8
|
4
|
15,9
|
0,700
|
1"
|
107,9
|
14,3
|
50,8
|
49,2
|
34,5
|
79,4
|
4
|
15,9
|
0,800
|
1 1/4"
|
117,5
|
15,9
|
63,5
|
58,8
|
43,2
|
88,9
|
4
|
15,9
|
1,100
|
1 1/2"
|
127,0
|
17,5
|
73,0
|
65,1
|
49,5
|
98,4
|
4
|
15,9
|
1,400
|
2"
|
152,4
|
19,0
|
92,1
|
77,8
|
62,0
|
120,6
|
4
|
19,0
|
2,200
|
2 1/2"
|
177,8
|
22,2
|
104,8
|
90,5
|
74,7
|
139,7
|
4
|
19,0
|
3,600
|
3"
|
190,5
|
23,8
|
127,0
|
107,9
|
90,7
|
152,4
|
4
|
19,0
|
4,100
|
3 1/2"
|
215,9
|
23,8
|
139,7
|
122,2
|
103,4
|
177,8
|
8
|
19,0
|
5,200
|
4"
|
228,6
|
23,8
|
157,2
|
134,9
|
116,1
|
190,5
|
8
|
19,0
|
5,600
|
5"
|
254,0
|
23,8
|
185,7
|
163,6
|
143,8
|
215,9
|
8
|
22,2
|
6,300
|
6"
|
279,4
|
25,4
|
215,9
|
192,1
|
170,7
|
241,3
|
8
|
22,2
|
7,500
|
8"
|
342,9
|
28,6
|
269,9
|
246,1
|
221,5
|
298,4
|
8
|
22,2
|
12,600
|
10"
|
406,4
|
30,2
|
323,8
|
304,8
|
276,3
|
361,9
|
12
|
25,4
|
18,500
|
12"
|
482,6
|
31,7
|
381,0
|
365,1
|
327,1
|
431,8
|
12
|
25,5
|
28,000
|
14"
|
533,4
|
34,9
|
412,7
|
400,0
|
359,1
|
476,2
|
12
|
28,6
|
36,000
|
16"
|
596,9
|
36,5
|
469,9
|
457,2
|
410,5
|
539,7
|
16
|
28,6
|
46,000
|
18"
|
635,0
|
39,7
|
533,4
|
504,8
|
461,8
|
577,8
|
16
|
31,7
|
50,000
|
20"
|
698,5
|
42,9
|
584,2
|
558,8
|
513,1
|
635,0
|
20
|
31,7
|
64,000
|
22"
|
749,3
|
46,0
|
641,2
|
609,6
|
564,4
|
692,1
|
20
|
34,9
|
72,000
|
24"
|
812,8
|
47,6
|
692,1
|
663,6
|
615,9
|
749,3
|
20
|
34,9
|
89,000
|
1. Class 150 flanges except Lap Joint will be furnished with 0.06 (1.6mm) raised face, which is included in ‘Thickness’ (C) and ‘Length through Hub’ (Y1), (Y3).
2. For Slip-on, Threaded, Socket Welding and Lap Joint Flanges, the hubs can be shaped either vertical from base to top or tapered within the limits of 7 degrees.
3. Blind Flanges may be made with the same hub as that used for Slip-on Flanges or without hub.
4. The gasket surface and backside (bearing surface for bolting) are made parallel within 1 degree. To accomplish parallelism, spot facing is carried out according to MSS SP-9, without reducing thickness (C).
5. Depth of Socket (D) is covered by ANSI B 16.5 only in sizes through 3 inch, over 3 inch is at the manufacturer’s option.
APPLICATIONS:
1. Petrochemical industry
2. Pharmaceutical industry
3. Food industry
4. Aviation and aerospace industry
5. Architectural decoration industry
6. Oil and gas industry
Other Features:
1) Chemical and Physical characteristic: durable, corrosion resistant and high-temperature resistant
2) We also produce flange with special specifications according to customers’ requirements;
Plate flanges are most widely used in fuel and water pipelines, where two flange plates are bolted together with a gasket in between them. The flange plate will have bolt holes all around the perimeter and will be used to create junctions, tees and joints.
APPLICATIONS:
1. Petrochemical industry
2. Pharmaceutical industry
3. Food industry
4. Aviation and aerospace industry
5. Architectural decoration industry
6. Oil and gas industry
Other Features:
1) Chemical and Physical characteristic: durable, corrosion resistant and high-temperature resistant
2) We also produce flange with special specifications according to customers’ requirements;
Plate flanges are most widely used in fuel and water pipelines, where two flange plates are bolted together with a gasket in between them. The flange plate will have bolt holes all around the perimeter and will be used to create junctions, tees and joints.
ASME B16.5 ASTM A182 F304 Plate Flange RF's Packing & Shipping
1) Packing Method:
Normal packing: plastic film or bubble paper wrapped on product's surface ,protect ends with caps , pack with wooden case or load on fumifation plywood pallet .
Custom made as customers request.
2) Shipping Way:
Usually by Sea, By Air, By Train or River-and-Sea Coordinated Transport.
As per customer's request.
Where can we find the high quality ASME B16.5 ASTM A182 F304 Plate Flange RF 16 Inch 150LB.
You can visit this website: www.yaang.com (Yaang Pipe Industry Co., Limited is a
China Plate Flange Manufacturer).
If any inquiry about products, please feel free to contact us sales@yaang.com
Related products:More>>
 |
