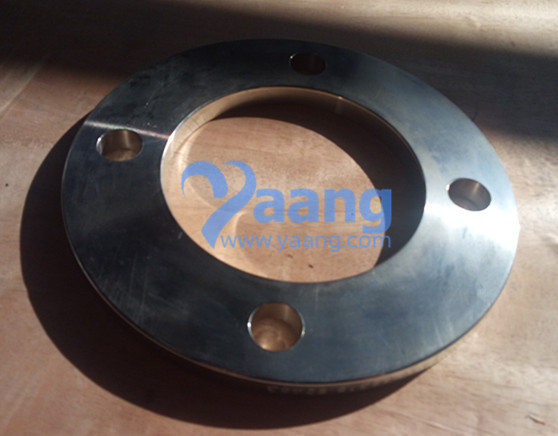

EN1092-1 Type 01 316L Plate Flange DN50 PN16
1. Material: 316L, etc
2. Size: 2" (DN50)
3. Standard:  EN1092-1 Type 01

4. Pressure: PN16

Plate flanges are fabricated mainly from quality mill steel plates. They are similar to slip on flange but without the hub and also require two fillet welds. Mostly the plate flanges are produced in accordance with DIN, JIS, UNI, BS or GOST standards.

When building a pipeline, the length of the pipes used are not always known. By manufacturing the pipes separate from the plate flanges, the welders can cut the pipes to length and weld a plate flanges in place to join the pipes at any needed length. The plates can also be welded to the pipe on a slight bias, allowing two pipes to be joined that may not be precisely lined up.

China Plate Flange Manufacturer yaang supplies EN1092-1 Type 01 316L Plate Flange, DN50, PN16.

Composition ranges for 316L grade of stainless steels

Grade		C	Mn	Si	P	S	Cr	Mo	Ni	N
316	Min	-	-	-	0	-	16.0	2.00	10.0	-
	Max	0.08	2.0	0.75	0.045	0.03	18.0	3.00	14.0	0.10
316L	Min	-	-	-	-	-	16.0	2.00	10.0	-
	Max	0.03	2.0	0.75	0.045	0.03	18.0	3.00	14.0	0.10
316H	Min	0.04	0.04	0	-	-	16.0	2.00	10.0	-
	max	0.10	0.10	0.75	0.045	0.03	18.0	3.00	14.0	-

Type	316L Plate Flange
Size	1/2" to 80"
Standards	SO, WN, SW, TH, LJ, BL, PL, etc
Material	Carbon Steel Plate Flanges: ASTM A105/A105N, etc Stainless Steel Plate Flanges: ASTM A182 F304/304L/304H, F316/316L, F310, F321, F904L, etc Alloy Steel Plate Flanges: ASTM A182 F1, F5, F9, F11, F22, F91, etc Nickel Alloys Plate Flanges: Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II). Duplex, Super Duplex Plate Flanges: ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61, 2205 (UNS No. S31803), 2507 (UNS No.S32750), etc Copper Alloy Plate Flanges: UNS No. C 10100, 10200, 10300, 10800, 12000, 12200, 70600, 71500, UNS No. C 70600 (Cu -Ni- 90/10), C71500 (Cu -Ni- 70/30), etc
Surface treatment	Chamfering
Applications	Petroleum,chemical,power,gas,metallurgy, shipbuilding, construction, etc

EN 1092-1 TYPE 01 PN16 PLATE FLANGE
Rated  Diameter	Pipe	Flange				Screws			Weight (7,85 Kg/dm3)
		j	g	D	b	i	Thread	Bolt holes	KG
10	17,2	18,0	60	90	14	14	M12	4	0,602
15	21,3	22,0	65	95	14	14	M12	4	0,668
20	26,9	27,5	75	105	16	14	M12	4	0,933
25	33,7	34,5	85	115	16	14	M12	4	1,106
32	42,4	43,5	100	140	18	18	M16	4	1,816
40	48,3	49,5	110	150	18	18	M16	4	2,075
50	60,3	61,5	125	165	20	18	M16	4	2,723
65	76,1	77,5	145	185	20	18	M16	4	3,310
80	88,9	90,5	160	200	20	18	M16	8	3,592
100	114,3	116,0	180	220	22	18	M16	8	4,375
125	139,7	141,5	210	250	22	18	M16	8	5,394
150	168,3	170,5	240	285	24	22	M20	8	7,123
200	219,1	221,5	295	340	26	22	M20	12	9,705
250	273,0	276,5	355	405	29	26	M24	12	14,164
300	323,9	327,5	410	460	32	26	M24	12	18,928
350	355,6	359,0	470	520	35	26	M24	16	28,118
400	406,4	411,0	525	580	38	30	M27	16	35,754
450	457,0	462,0	585	640	42	30	M27	20	45,992
500	508,0	513,5	650	715	46	33	M30	20	63,832
600	610,0	616,5	770	840	55	36	M33	20	101,285
700	711,0	714,2	840	910	63	36	M33	24	111,103
800	813,0	815,8	950	1025	74	39	M36	24	158,555
900	914,0	917,4	1050	1125	82	39	M36	28	192,239
1000	1016,0	1019,0	1170	1255	90	42	M39	28	269,554
1. SURFACE FINISH FACING TYPES A, B1, B2 etc
2. FLANGE MARKING: LOGO EN 1092-1 / 01 A / DN100 / PN16 / P245GH / HEAT NUMBER

APPLICATIONS:

1. Petrochemical industry

2. Pharmaceutical industry

3. Food industry

4. Aviation and aerospace industry

5. Architectural decoration industry

6. Oil and gas industry

Other Features:

1) Chemical and Physical characteristic: durable, corrosion resistant and high-temperature resistant

2) We also produce flange with special specifications according to customers’ requirements;

Plate flange is most widely used in fuel and water pipelines, where two flange plates are bolted together with a gasket in between them. The flange plate will have bolt holes all around the perimeter and will be used to create junctions, tees and joints.
